| Belt pulley: | with ribbed V-belt pulley |
| Compressor ID: | Dkv-09z |
| Inlet diameter [mm]: | 21,2 |
| Mount type: | Three-point mount |
| Number of grooves: | 6 |
| Oil quantity [ml]: | 110 |
| Outlet diameter [mm]: | 15,3 |
| Pulley diameter [mm]: | 103 |
| Refrigerant: | R 1234yf, R 134a |
| Voltage [V]: | 12 |
| Compressor oil: | Pag 46 |
| Manufacturer limitation: | Sanden trse90 keihin |
| Number of fixing holes: | 4 |
| Number of grooves: | 7 |
| Number of ribs: | 7 |
| Oil quantity [ml]: | 165 |
| Pulley diameter [mm]: | 112 |
| Refrigerant: | R 134a |
| Belt pulley: | with ribbed V-belt pulley |
| Compressor ID: | Trse09 |
| Id. Cylinder head no. (Compressor): | Pb |
| Number of ribs: | 7 |
| Packing height [cm]: | 20 |
| Packing length [cm]: | 24.5 |
| Packing width [cm]: | 20 |
| Pulley diameter [mm]: | 100 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Compressor displacement [cc]: | 120, 123 |
| Compressor ID: | Cvc6 |
| Compressor oil: | Pag 46 |
| Features of version 2: | O-rings included, Prefilled pag-oil |
| Manufacturer limitation: | Delphi / harrison |
| Number of grooves: | 6 |
| Number of poles: | 2 |
| Oil quantity [ml]: | 100 |
| Pulley diameter [mm]: | 110 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Compressor displacement [cc]: | 170,5 |

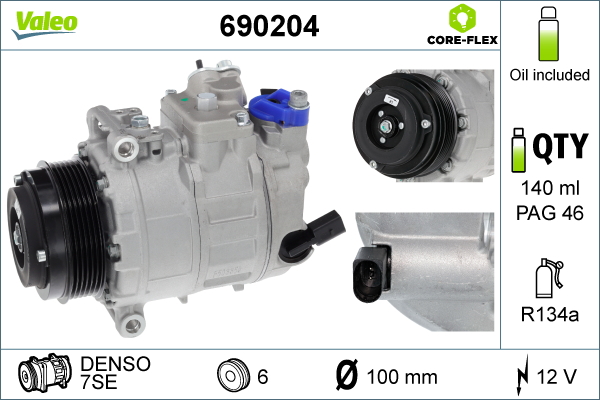

| Compressor ID: | 7SE |
| Number of grooves: | 6 |
| Oil quantity [ml]: | 140 |
| Pulley diameter [mm]: | 100 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Weight, kg]: | 6.19 |
| Compressor displacement [cc]: | 178 |
| Compressor ID: | 10pa17c |
| Compressor oil: | Pag 46 |
| Features of version 2: | O-rings included, Prefilled pag-oil |
| Manufacturer limitation: | Denso |
| Number of grooves: | 4 |
| Number of poles: | 2 |
| Oil quantity [ml]: | 150, 220 |
| Pulley diameter [mm]: | 110 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Working voltage [V]: | 24 |
| Mount type: | Three-point mount |
| Number of grooves: | 6 |
| Oil quantity [ml]: | 200 |
| Pulley diameter [mm]: | 109 |
| Refrigerant: | R 1234yf, R 134a |
| Belt pulley: | with ribbed V-belt pulley |
| Compressor displacement [cc]: | 140 |
| Compressor ID: | 6seu14a |
| Inlet diameter [mm]: | 28,40 |
| Number of grooves: | 6 |
| Oil quantity [ml]: | 100 |
| Outlet diameter [mm]: | 15,30 |
| Pulley diameter [mm]: | 110 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Compressor displacement [cc]: | 160 |
| Compressor ID: | 7seu17c |
| Number of grooves: | 6 |
| Oil quantity [ml]: | 150 |
| Pulley diameter [mm]: | 100 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Compressor oil: | Pag 46 |
| Manufacturer limitation: | Visteon vs16 |
| Number of fixing holes: | 4 |
| Number of grooves: | 5 |
| Number of ribs: | 5 |
| Oil quantity [ml]: | 200 |
| Pulley diameter [mm]: | 110 |
| Refrigerant: | R 134a |
| Additional Information: | With accessories |
| Belt pulley: | With ribbed V-belt pulley, with ribbed V-belt pulley |
| Compressor displacement [cc]: | 160 |
| Compressor ID: | Cvc |
| Inlet diameter [mm]: | 11,8 |
| Manufacturer limitation: | Pv6 |
| Mount type: | Three-point mount |
| Number of grooves: | 6 |
| Number of poles: | 2 |
| Number of ribs: | 6 |
| Outlet diameter [mm]: | 11,8 |
| Pulley diameter [mm]: | 108 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Mount type: | Three-point mount |
| Oil quantity [ml]: | 135 |
| Pulley diameter [mm]: | 125 |
| Refrigerant: | R 134a |
| Belt pulley: | With ribbed V-belt pulley, with ribbed V-belt pulley |
| Equipment option: | Sanden |
| Features of version 2: | Sanden |
| Inlet diameter [mm]: | 14,9, 14.9 |
| Manufacturer limitation: | Pv6 |
| Mount type: | Four-point mount |
| Number of grooves: | 6 |
| Number of ribs: | 6 |
| Oil quantity [ml]: | 135 |
| Outlet diameter [mm]: | 12,2, 12.2 |
| Pulley diameter [mm]: | 130 |
| Refrigerant: | R 134a |
| Manufacturer limitation: | Sanden sd6v12 |
| Number of grooves: | 6 |
| Number of ribs: | 6 |
| Oil quantity [ml]: | 135 |
| Pulley diameter [mm]: | 110 |
| Refrigerant: | R 134a |
| Belt pulley: | With ribbed V-belt pulley, with ribbed V-belt pulley |
| Compressor displacement [cc]: | 170 |
| Compressor ID: | 7seu17c |
| Inlet diameter [mm]: | 28,4, 28.4 |
| Manufacturer limitation: | Pv 6 |
| Mount type: | Three-point mount |
| Number of grooves: | 6 |
| Number of poles: | 2 |
| Number of ribs: | 6 |
| Oil quantity [ml]: | 180 |
| Outlet diameter [mm]: | 15,5, 15.5 |
| Pulley diameter [mm]: | 110 |
| Refrigerant: | R 134a |
| The form: | Oval |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Compressor oil: | Pag 100 |
| Manufacturer limitation: | Panasonic matsushita |
| Number of fixing holes: | 4 |
| Number of grooves: | 8 |
| Number of ribs: | 8 |
| Oil quantity [ml]: | 120 |
| Pulley diameter [mm]: | 118 |
| Refrigerant: | R 134a |
| Belt pulley: | With ribbed V-belt pulley, with ribbed V-belt pulley |
| Manufacturer limitation: | Pv6 |
| Number of grooves: | 6 |
| Number of ribs: | 6 |
| Additional Information: | With accessories |
| Belt pulley: | With ribbed V-belt pulley, with ribbed V-belt pulley |
| Compressor ID: | Cvc |
| Inlet diameter [mm]: | 17,91, 17.91 |
| Manufacturer limitation: | Pv6 |
| Number of grooves: | 6 |
| Number of poles: | 1 |
| Number of ribs: | 6 |
| Oil quantity [ml]: | 150 |
| Outlet diameter [mm]: | 15,19, 15.19 |
| Pulley diameter [mm]: | 108 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
