| Mount type: | Three-point mount |
| Number of grooves: | 6 |
| Oil quantity [ml]: | 90 |
| Pulley diameter [mm]: | 108 |
| Refrigerant: | R 1234yf, R 134a |
| Compressor displacement [cc]: | 154 |
| Compressor ID: | Fs10-154 |
| Compressor oil: | Pag 46 |
| Features of execution 5: | Easy fit |
| Features of execution 8: | With PAG compressor oil |
| Manufacturer limitation: | Visteon-equivalent |
| Number of grooves: | 6 |
| Oil quantity [ml]: | 200 |
| Pulley diameter [mm]: | 129 |
| Refrigerant: | R 134a |
| The form: | Rectangular |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Compressor displacement [cc]: | 170 |
| Compressor ID: | Fs10-170 |
| Compressor oil: | Pag 46 |
| Features of execution 5: | Easy fit |
| Features of execution 8: | With PAG compressor oil |
| Manufacturer limitation: | Visteon-equivalent |
| Number of grooves: | 6 |
| Oil quantity [ml]: | 190 |
| Pulley diameter [mm]: | 115 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Compressor displacement [cc]: | 100 |
| Compressor ID: | Sd7b10 |
| Compressor oil: | Pag 46 |
| Features of execution 5: | Easy fit |
| Features of execution 8: | With PAG compressor oil |
| Id. Cylinder head no. (Compressor): | Pb |
| Inlet diameter [mm]: | 14,9, 14.9 |
| Manufacturer limitation: | Sanden-equivalent |
| Number of grooves: | 2 |
| Oil quantity [ml]: | 100 |
| Outlet diameter [mm]: | 12,2, 12.2 |
| Pulley diameter [mm]: | 115 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Compressor displacement [cc]: | 161.3 |
| Compressor ID: | Sd7v16 |
| Compressor oil: | Pag 46 |
| Features of execution 8: | With PAG compressor oil |
| Id. Cylinder head no. (Compressor): | Vpb |
| Inlet diameter [mm]: | 17,7, 17.7 |
| Manufacturer limitation: | Sanden-equivalent |
| Number of grooves: | 6 |
| Oil quantity [ml]: | 135 |
| Outlet diameter [mm]: | 11,8, 11.8 |
| Pulley diameter [mm]: | 125 |
| Refrigerant: | R 134a |
| The form: | Round |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Belt pulley: | With ribbed V-belt pulley, with ribbed V-belt pulley |
| Compressor displacement [cc]: | 170 |
| Compressor ID: | 10s17c |
| Compressor oil: | Pag 46 |
| Features of execution 8: | With PAG compressor oil |
| Inlet diameter [mm]: | 18 |
| Manufacturer limitation: | Denso-equivalent |
| Number of grooves: | 5 |
| Oil quantity [ml]: | 160 |
| Outlet diameter [mm]: | 15,3, 15.3 |
| Pulley diameter [mm]: | 128 |
| Refrigerant: | R 134a |
| The form: | Round |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Belt pulley: | With ribbed V-belt pulley, with ribbed V-belt pulley |
| Compressor ID: | Csp11 |
| Equipment option: | Delphi |
| Inlet diameter [mm]: | 15,5, 15.5 |
| Manufacturer limitation: | Pv4 |
| Number of grooves: | 4 |
| Number of poles: | 2 |
| Number of ribs: | 4 |
| Oil quantity [ml]: | 110 |
| Outlet diameter [mm]: | 11,6, 11.6 |
| Pulley diameter [mm]: | 107 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Compressor oil: | Pag 46 |
| Manufacturer limitation: | Sanden sd7v12 |
| Mount type: | Fork bracket |
| Number of fixing holes: | 8 |
| Number of grooves: | 5 |
| Number of ribs: | 5 |
| Oil quantity [ml]: | 135 |
| Pulley diameter [mm]: | 119 |
| Refrigerant: | R 134a |
| Belt pulley: | With ribbed V-belt pulley, with ribbed V-belt pulley |
| Compressor ID: | V5 |
| Compressor oil: | Pag 150 |
| Features of execution 8: | With PAG compressor oil |
| Inlet diameter [mm]: | 16,5, 16.5 |
| Manufacturer limitation: | Delphi-equivalent |
| Number of grooves: | 6 |
| Oil quantity [ml]: | 265 |
| Outlet diameter [mm]: | 16,5, 16.5 |
| Pulley diameter [mm]: | 119 |
| Refrigerant: | R 134a |
| The form: | Oval |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Compressor oil: | Pag 46 |
| Manufacturer limitation: | Denso scs06 |
| Number of fixing holes: | 3 |
| Number of grooves: | 5 |
| Number of ribs: | 5 |
| Oil quantity [ml]: | 80 |
| Pulley diameter [mm]: | 100 |
| Refrigerant: | R 134a |
| Belt pulley: | Double belt pulley, With double pulley |

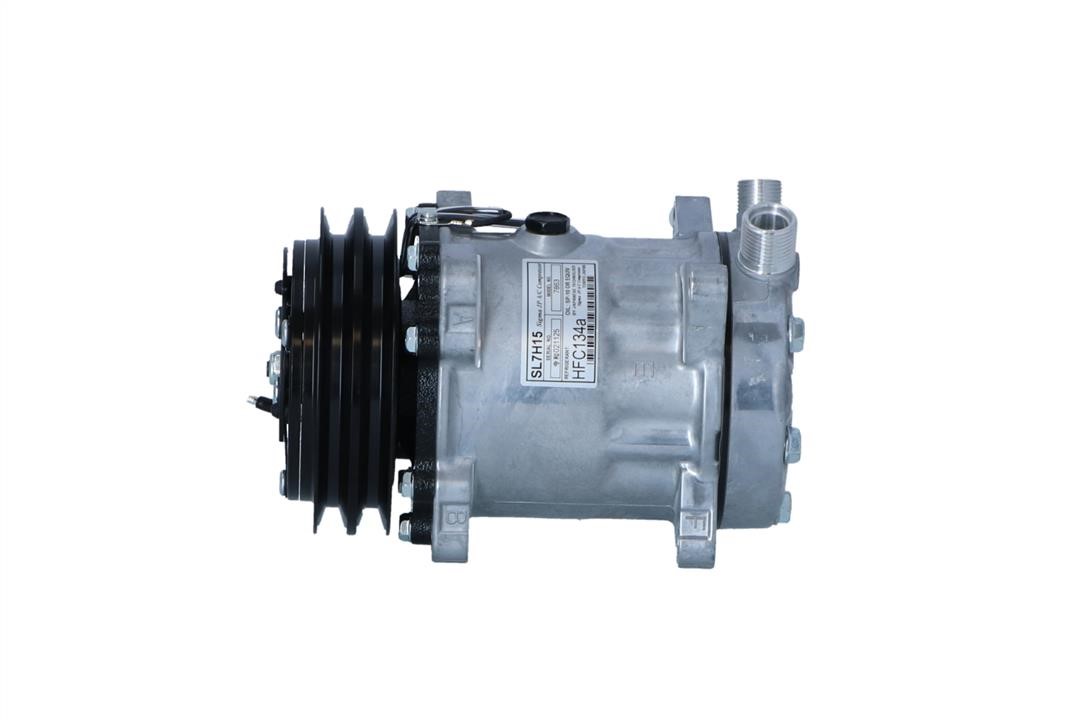

| Compressor displacement [cc]: | 154.9 |
| Compressor ID: | Sd7h15 |
| Compressor oil: | Pag 46 |
| Connecting thread: | 7/8" / 3/4" |
| Features of execution 8: | With PAG compressor oil |
| Id. Cylinder head no. (Compressor): | Jd/je |
| Manufacturer limitation: | Sanden-equivalent |
| Number of grooves: | 2 |
| Oil quantity [ml]: | 135 |
| Pulley diameter [mm]: | 132 |
| Refrigerant: | R 134a |
| The form: | Round |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Compressor oil: | Pag 46 |
| Manufacturer limitation: | Sanden |
| Number of fixing holes: | 4 |
| Number of grooves: | 6 |
| Number of ribs: | 6 |
| Oil quantity [ml]: | 135 |
| Pulley diameter [mm]: | 130 |
| Refrigerant: | R 134a |
| Compressor oil: | Pag 46 |
| Manufacturer limitation: | Denso scsc06 |
| Number of fixing holes: | 4 |
| Number of grooves: | 6 |
| Number of ribs: | 6 |
| Oil quantity [ml]: | 80 |
| Pulley diameter [mm]: | 100 |
| Refrigerant: | R 134a |
| Compressor displacement [cc]: | 155 |
| Compressor ID: | Sd7h15 |
| Compressor oil: | Pag 46 |
| Features of version 2: | O-rings included, Prefilled pag-oil |
| Inlet diameter [mm]: | 18.5 |
| Manufacturer limitation: | Sanden |
| Number of grooves: | 5 |
| Number of poles: | 1 |
| Oil quantity [ml]: | 170, 180 |
| Outlet diameter [mm]: | 18.5 |
| Pulley diameter [mm]: | 117 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Compressor oil: | Pag 46 |
| Manufacturer limitation: | Sanden sd6v12 |
| Number of fixing holes: | 8 |
| Number of grooves: | 6 |
| Number of ribs: | 6 |
| Oil quantity [ml]: | 135 |
| Pulley diameter [mm]: | 119 |
| Refrigerant: | R 134a |
| Belt pulley: | With multi-ribbed pulley |
| Compressor displacement [cc]: | 170 |
| Compressor ID: | 10s17c |
| Compressor oil: | Pag 46 |
| Features of execution 8: | With PAG compressor oil |
| Inlet diameter [mm]: | 18,3, 18.3 |
| Manufacturer limitation: | Denso-equivalent |
| Number of grooves: | 7 |
| Oil quantity [ml]: | 190 |
| Outlet diameter [mm]: | 15,5, 15.5 |
| Pulley diameter [mm]: | 130 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Compressor displacement [cc]: | 161.3 |
| Compressor ID: | Sd7v16 |
| Compressor oil: | Pag 46 |
| Features of execution 8: | With PAG compressor oil |
| Id. Cylinder head no. (Compressor): | Vql |
| Inlet diameter [mm]: | 18,3, 18.3 |
| Manufacturer limitation: | Genuine sanden |
| Number of grooves: | 7 |
| Oil quantity [ml]: | 135 |
| Outlet diameter [mm]: | 13 |
| Pulley diameter [mm]: | 120 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Belt pulley: | With ribbed V-belt pulley, with ribbed V-belt pulley |
| Compressor displacement [cc]: | 161.3 |
| Compressor ID: | Sd7v16 with adapter |
| Compressor oil: | Pag 46 |
| Features of execution 5: | Easy fit |
| Features of execution 8: | With PAG compressor oil |
| Id. Cylinder head no. (Compressor): | Vql / vqs |
| Inlet diameter [mm]: | 18,3, 18.3 |
| Manufacturer limitation: | Sanden-equivalent |
| Number of grooves: | 6 |
| Oil quantity [ml]: | 135 |
| Outlet diameter [mm]: | 13 |
| Pulley diameter [mm]: | 119 |
| Refrigerant: | R 134a |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
| Belt pulley: | Multi-ribbed belt pulley, With multi-ribbed pulley |

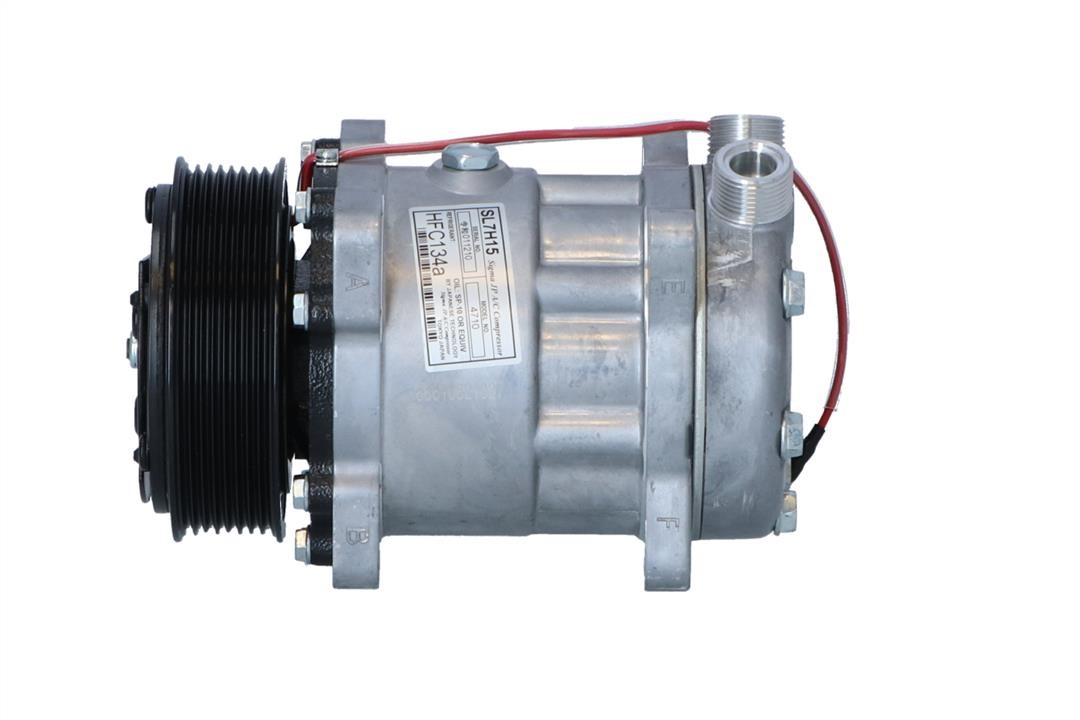

| Compressor displacement [cc]: | 154.9 |
| Compressor ID: | Sd7h15 |
| Compressor oil: | Pag 100 |
| Connecting thread: | 1"x14 / 1"x14 |
| Features of execution 8: | With PAG compressor oil |
| Id. Cylinder head no. (Compressor): | Cb |
| Manufacturer limitation: | Sanden-equivalent |
| Number of grooves: | 8 |
| Oil quantity [ml]: | 135 |
| Pulley diameter [mm]: | 119 |
| Refrigerant: | R 134a |
| The form: | Round |
| Voltage [V]: | 12 |
| Working voltage [V]: | 12 |
