Arrangement / number of holes: | 04/04 |
Brake disc thickness [mm]: | 10 |
Brake disc type: | Full |
Centering diameter [mm]: | 86 |
Chamfer diameter 1 [mm]: | 102 |
Chamfer diameter 2 [mm]: | 102 |
Diameter [mm]: | 215 |
Features of execution: | Without wheel bearing |
Features of execution 8: | Without hub, Without wheel axle |
Height [mm]: | 33 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 8, 9 |
Number of mounting holes: | 4 |
Outside diameter [mm]: | 215.2 |
Part type: | Brake disc |
Surface: | Varnished |
Weight, kg]: | 2.46 |
Brake disc thickness [mm]: | 10 |
Brake disc type: | Full |
Brake system: | Ate |
Centering diameter [mm]: | 86 |
Height [mm]: | 33 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 8 |
Number of holes in the wheel rim: | 4 |
Outside diameter [mm]: | 215 |
Part type: | Brake disc |
Arrangement / number of holes: | 04/07 |
Brake disc thickness [mm]: | 9 |
Brake disc type: | Full |
Centering diameter [mm]: | 55 |
Chamfer diameter 1 [mm]: | 100 |
Chamfer diameter 2 [mm]: | 100 |
Diameter [mm]: | 269 |
Features of execution: | Without wheel bearing |
Features of execution 8: | Without hub, Without wheel axle |
Height [mm]: | 56, 57 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 8 |
Number of mounting holes: | 4 |
Outside diameter [mm]: | 268 |
Part type: | Brake disc |
Surface: | Coated, Varnished |
Weight, kg]: | 3.62 |
Brake disc thickness [mm]: | 10 |
Brake disc type: | Full |
Centering diameter [mm]: | 86 |
Chamfer diameter 1 [mm]: | 102 |
Chamfer diameter 2 [mm]: | 102 |
Colour: | Black |
Diameter [mm]: | 215.2 |
Height [mm]: | 33 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 9 |
Number of mounting holes: | 4 |
Outside diameter [mm]: | 215.2 |
Part type: | Brake disc |
Surface: | Varnished |
Thread size: | M10 x 1.25 |
Brake disc thickness [mm]: | 9 |
Brake disc type: | Full |
Centering diameter [mm]: | 55 |
Height [mm]: | 55,5 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 8 |
Number of holes in the wheel rim: | 4 |
Outside diameter [mm]: | 269 |
Part type: | Brake disc |
Brake disc thickness [mm]: | 10 |
Brake disc type: | Full |
Centering diameter [mm]: | 86 |
Diameter [mm]: | 215 |
For article or original number: | 08.5026.10 |
Height [mm]: | 33 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 8 |
Number of mounting holes: | 4 |
Outside diameter [mm]: | 215 |
Part type: | Brake disc |
Tightening torque [Nm]: | 98 |
Brake disc thickness [mm]: | 9 |
Brake disc type: | Full |
Chamfer diameter 1 [mm]: | 55 |
Chamfer diameter 2 [mm]: | 55 |
Diameter [mm]: | 268.1 |
Height [mm]: | 56 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 8 |
Number of holes: | 4 |
Number of mounting holes: | 4 |
Outside diameter [mm]: | 268,1 |
Part type: | Brake disc |
Arrangement / number of holes: | 05/09 |
Brake disc thickness [mm]: | 23 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 64.2 |
Chamfer diameter 1 [mm]: | 114.3 |
Chamfer diameter 2 [mm]: | 114.3 |
Height [mm]: | 47,2 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 21 |
Outside diameter [mm]: | 282 |
Part type: | Brake disc |
Required amount: | 2 |
Surface: | Varnished |
Weight, kg]: | 6.36 |
Brake disc thickness [mm]: | 25 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 55 |
Chamfer diameter 1 [mm]: | 100 |
Chamfer diameter 2 [mm]: | 100 |
Height [mm]: | 49,2, 49.1 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 23, 24 |
Number of mounting holes: | 4 |
Outside diameter [mm]: | 255 |
Part type: | Brake disc |
Surface: | Varnished |
Wheel bolt hole diameter [mm]: | 14.5 °C |
Arrangement / number of holes: | 04/07 |
Brake disc thickness [mm]: | 9.3 |
Brake disc type: | Full |
Centering diameter [mm]: | 55.1 |
Chamfer diameter 1 [mm]: | 100 |
Height [mm]: | 55,7 |
Location: | Rear axle |
Minimum thickness [mm]: | 7.4 |
Outside diameter [mm]: | 269 |
Surface: | Varnished |
Brake disc thickness [mm]: | 9 |
Brake disc type: | Full |
Centering diameter [mm]: | 55 |
Height [mm]: | 57,0 |
Location: | Rear axle |
Minimum thickness [mm]: | 8 |
Number of holes: | 4 |
Outside diameter [mm]: | 268 |
Brake disc thickness [mm]: | 9 |
Brake disc type: | Full |
Chamfer diameter 1 [mm]: | 55,9 |
Chamfer diameter 2 [mm]: | 55.9 |
Diameter [mm]: | 269 |
Height [mm]: | 56, 56,0 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 8 |
Number of mounting holes: | 4 |
Outside diameter [mm]: | 269 |
Part type: | Brake disc |
check value: | Approved, Ece r90 approved |
Arrangement / number of holes: | 05/09 |
Brake disc thickness [mm]: | 23 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 64, 64.2 |
Chamfer diameter 1 [mm]: | 114.3 |
Chamfer diameter 2 [mm]: | 114.3 |
Diameter [mm]: | 282 |
Features of execution: | Without wheel bearing |
Features of execution 8: | Without hub, Without wheel axle |
Height [mm]: | 47, 47.3 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 21 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 282 |
Part type: | Brake disc |
Surface: | Varnished |
Weight, kg]: | 6.1 |
Arrangement / number of holes: | 04/04 |
Brake disc thickness [mm]: | 25 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 55.1 |
Chamfer diameter 1 [mm]: | 100 |
Height [mm]: | 49,3 |
Location: | Front axle |
Minimum thickness [mm]: | 23 |
Outside diameter [mm]: | 255 |
Surface: | Varnished |
Brake disc thickness [mm]: | 9 |
Brake disc type: | Full |
Centering diameter [mm]: | 55 |
Diameter [mm]: | 268 |
Height [mm]: | 57 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 8 |
Number of mounting holes: | 4 |
Outside diameter [mm]: | 268 |
Part type: | Brake disc |
Weight, kg]: | 3.78 |
Brake disc thickness [mm]: | 25 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 55 |
Height [mm]: | 49,4 |
Location: | Front axle |
Minimum thickness [mm]: | 23 |
Outside diameter [mm]: | 255 |
Surface: | Varnished |
check value: | Approved |
Brake disc thickness [mm]: | 25 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 55 |
Height [mm]: | 49,5 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 23 |
Number of holes in the wheel rim: | 4 |
Outside diameter [mm]: | 256 |
Part type: | Brake disc |
Brake disc thickness [mm]: | 25 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 55 |
Diameter [mm]: | 256 |
For article or original number: | T2001v |
Height [mm]: | 49,5, 49.5 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 23 |
Number of holes in the wheel rim: | 4 |
Number of mounting holes: | 4 |
Outside diameter [mm]: | 256 |
Part type: | Brake disc |
Brake disc type: | Ventilated |
Location: | Front axle |
Location in the car: | Left, Right |
Part type: | Brake disc |

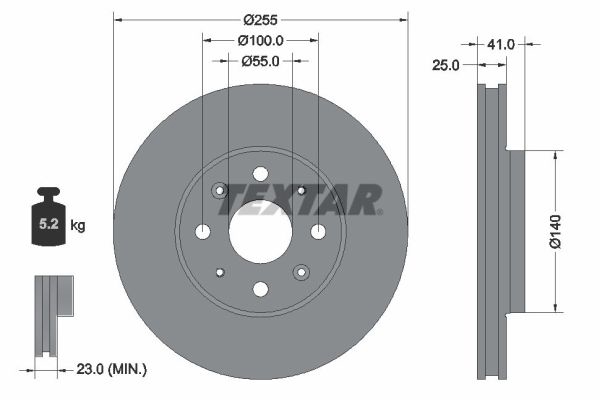

Brake disc thickness [mm]: | 25 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 55 |
Diameter [mm]: | 255 |
Height [mm]: | 49,3, 49.3 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 24 |
Number of mounting holes: | 4 |
Outside diameter [mm]: | 255 |
Part type: | Brake disc |
Weight, kg]: | 5.2 |
check value: | K.B.A.: 61209 |
