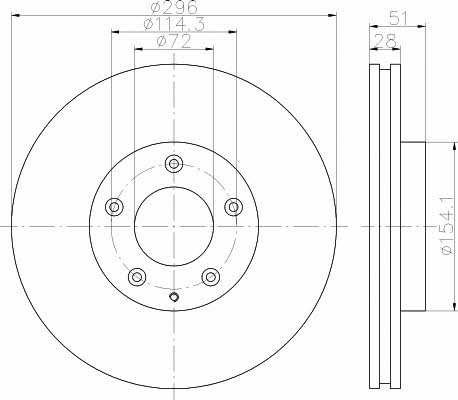

Arrangement / number of holes: | 05/06 |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 72 |
Chamfer diameter 1 [mm]: | 114.3 |
Chamfer diameter 2 [mm]: | 114.3 |
Diameter [mm]: | 296 |
Features of execution 8: | Without hub, Without wheel axle |
Height [mm]: | 51 |
Location: | Front axle |
Minimum thickness [mm]: | 26 |
Outside diameter [mm]: | 296 |
Packing height [cm]: | 12 |
Packing length [cm]: | 33 |
Packing width [cm]: | 31.5 |
Technical information: | 98200 1481 0 1 |
Weight, kg]: | 8.21 |
Brake disc thickness [mm]: | 18 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 72 |
Chamfer diameter 2 [mm]: | 72 |
Diameter [mm]: | 285.3 |
Height [mm]: | 57,5, 57.5 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 17 |
Number of holes: | 5 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 285,3 |
Part type: | Brake disc |

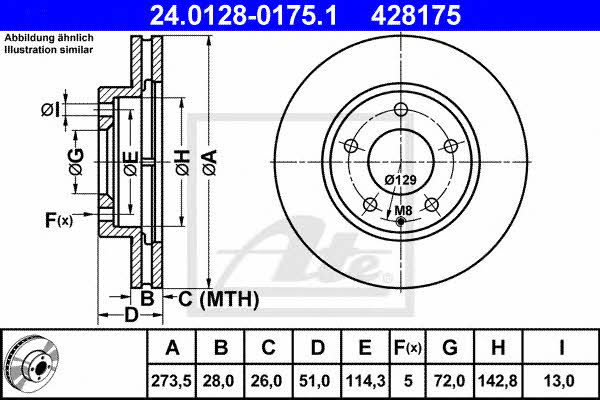

Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 72 |
Chamfer diameter 1 [mm]: | 114.3 |
Chamfer diameter 2 [mm]: | 114.3 |
Diameter [mm]: | 273.5 |
Height [mm]: | 51 |
Hole diameter [mm]: | 13 |
Inner diameter [mm]: | 142.8 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 273.5 |
Part type: | Brake disc |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 72 |
Diameter [mm]: | 274 |
Height [mm]: | 51 |
Location: | Front axle |
Location in the car: | Left, Right |
Manufacturing material: | Grey cast iron |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 274 |
Part type: | Brake disc |
Thickness [mm]: | 28 mm |
Brake disc thickness [mm]: | 26 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 102 |
Diameter [mm]: | 290 |
Height [mm]: | 42, 42.5 |
Location: | Front axle |
Location in the car: | Left, Right |
Number of mounting holes: | 10 |
Part type: | Brake disc |
Brake disc thickness [mm]: | 18 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 114.3 |
Chamfer diameter 2 [mm]: | 114.3 |
Diameter [mm]: | 286 |
Height [mm]: | 57 |
Hub diameter [mm]: | 202 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 16 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 286 |
Part type: | Brake disc |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Build type: | Fixed with bolts / screws |
Centering diameter [mm]: | 72 |
Depth [mm]: | 51 |
Diameter [mm]: | 274 |
Height [mm]: | 51 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 274 |
Part type: | Brake disc |
Surface: | Oiled |
Treatment: | Untreated |
check value: | E1 90R-02C0074/1560 |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 72 |
Chamfer diameter 1 [mm]: | 114.3 |
Diameter [mm]: | 274 |
Height [mm]: | 51 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 274 |
Part type: | Brake disc |
Surface: | Oiled |
Wheel hub diameter [mm]: | 72 |
complies with EEC standards: | ECE-R90 |
Brake disc thickness [mm]: | 18 |
Brake disc type: | Ventilated |
Diameter [mm]: | 286 |
Height [mm]: | 58 |
Hub diameter 1 [mm]: | 72 |
Hub diameter [mm]: | 72 |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 16 |
Number of holes in the wheel rim: | 5, 5 holes |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 286 |
Part type: | Brake disc |
Surface: | Coated |
Weight, kg]: | 5,9, 5.74 |
Brake disc thickness [mm]: | 18 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 72 |
Chamfer diameter 1 [mm]: | 114.3 |
Chamfer diameter 2 [mm]: | 114.3 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 16 |
Number of fixing holes: | 4 |
Number of holes in the wheel rim: | 5, 5 holes |
Number of mounting holes: | 4, 5 |
Outside diameter [mm]: | 286 |
Part type: | Brake disc |
Required amount: | 2 |
Surface: | Coated |
Thickness [mm]: | 58 mm |
Weight, kg]: | 6.06 |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Chamfer diameter 2 [mm]: | 114.3 |
Diameter [mm]: | 274 |
Height [mm]: | 51 |
Hub diameter 1 [mm]: | 72 |
Hub diameter [mm]: | 72 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of holes in the wheel rim: | 5, 5 holes |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 274 |
Part type: | Brake disc |
Weight, kg]: | 6.9, 7.25 |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 72 |
Chamfer diameter 1 [mm]: | 114 |
Chamfer diameter 2 [mm]: | 114 |
Colour: | Black |
Diameter [mm]: | 274 |
Height [mm]: | 51 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 274 |
Part type: | Brake disc |
Surface: | Varnished |
Thread size: | 13 |
check value: | E1 90R-02 C0176/0673 |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 72 |
Chamfer diameter 1 [mm]: | 114.3 |
Chamfer diameter 2 [mm]: | 114.3 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of fixing holes: | 1 |
Number of holes in the wheel rim: | 5, 5 holes |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 296 |
Part type: | Brake disc |
Required amount: | 2 |
Surface: | Coated |
Thickness [mm]: | 51 mm |
Weight, kg]: | 8.62 |
Brake disc thickness [mm]: | 18 |
Brake disc type: | Ventilated |
Diameter [mm]: | 286 |
Height [mm]: | 57 |
Hub diameter 1 [mm]: | 72 |
Hub diameter [mm]: | 72 |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 16 |
Number of holes in the wheel rim: | 5, 5 holes |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 286 |
Part type: | Brake disc |
Surface: | Coated |
Weight, kg]: | 5.2, 5.47 |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 72 |
Height [mm]: | 51,5 |
Location: | Front axle |
Minimum thickness [mm]: | 26 |
Number of holes: | 5 |
Outside diameter [mm]: | 274 |
Surface: | Varnished |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Full, Ventilated |
Centering diameter [mm]: | 72 |
Chamfer diameter 1 [mm]: | 114.3 |
Chamfer diameter 2 [mm]: | 114.3 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of fixing holes: | 1 |
Number of holes in the wheel rim: | 5, 5 holes |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 274 |
Part type: | Brake disc |
Required amount: | 2 |
Surface: | Coated |
Thickness [mm]: | 511 mm |
Weight, kg]: | 7.25 |
Brake disc thickness [mm]: | 18 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 72 |
Chamfer diameter 2 [mm]: | 72 |
Diameter [mm]: | 285.5 |
Height [mm]: | 58,2, 58.2 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 16 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 285.5 |
Part type: | Brake disc |
Surface: | Varnished |
check value: | Approved, Ece r90 approved |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 72 |
Chamfer diameter 2 [mm]: | 72 |
Diameter [mm]: | 274 |
Height [mm]: | 51, 51,0 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 274 |
Part type: | Brake disc |
check value: | Approved, Ece r90 approved |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 72 |
Chamfer diameter 2 [mm]: | 72 |
Diameter [mm]: | 274 |
Height [mm]: | 51,5, 51.5 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of holes: | 5 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 274 |
Part type: | Brake disc |
Location: | Front axle |
Location in the car: | Left, Right |
Part type: | Brake disc |
