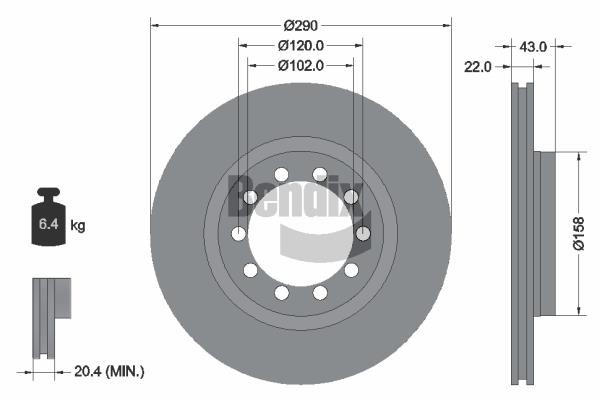

Arrangement / number of holes: | 05/10 |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 102, 102.1 |
Chamfer diameter 1 [mm]: | 120 |
Chamfer diameter 2 [mm]: | 120 |
Diameter [mm]: | 290 |
Features of execution: | Without wheel bearing |
Features of execution 8: | Without hub, Without wheel axle |
Height [mm]: | 42.5, 43 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 19, 20.4 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 290 |
Packing height [cm]: | 9.5 |
Packing length [cm]: | 33.5 |
Packing width [cm]: | 32 |
Part type: | Brake disc |
Technical information: | 98200 1174 0 1 |
Weight, kg]: | 6,3 |

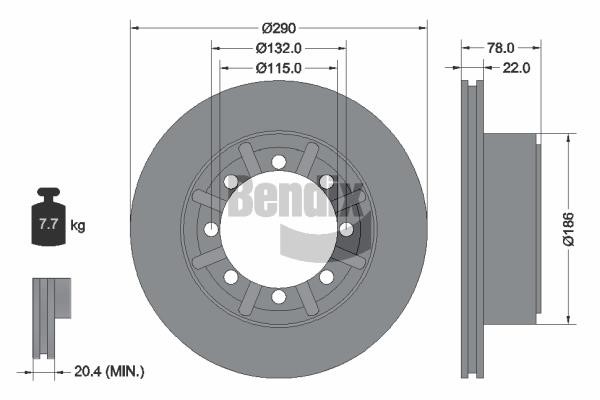

Arrangement / number of holes: | 08/08 |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 115 |
Chamfer diameter 1 [mm]: | 132 |
Chamfer diameter 2 [mm]: | 132 |
Diameter [mm]: | 290 |
Features of execution: | Without wheel bearing |
Features of execution 8: | Without hub, Without wheel axle |
Height [mm]: | 78 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 19 |
Number of mounting holes: | 8 |
Outside diameter [mm]: | 289.8 |
Part type: | Brake disc |
Surface: | Varnished |
Weight, kg]: | 7,9 |
Brake disc thickness [mm]: | 26 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 102 |
Chamfer diameter 1 [mm]: | 120 |
Diameter [mm]: | 290 |
Height [mm]: | 42,5 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 23 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 290 |
Part type: | Brake disc |
Surface: | Varnished |
Treatment: | High carbon |
Wheel hub diameter [mm]: | 102 |
Brake disc thickness [mm]: | 12 |
Brake disc type: | Full |
Build type: | Fixed with bolts / screws |
Centering diameter [mm]: | 90 |
Depth [mm]: | 67 |
Diameter [mm]: | 305 |
Features of execution 8: | With screws |
Height [mm]: | 67 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 10, 10.5 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 305 |
Part type: | Brake disc |
Surface: | Oiled |
Treatment: | Untreated |
check value: | E4 90 R - 02 C0703/2 |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Chamfer diameter 2 [mm]: | 120 |
Diameter [mm]: | 290 |
Height [mm]: | 42,5, 42.5 |
Hub diameter 1 [mm]: | 102 |
Hub diameter [mm]: | 102 |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 20 |
Number of holes in the wheel rim: | 10, 10 holes |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 290 |
Part type: | Brake disc |
Surface: | Coated |
Weight, kg]: | 6.32, 6.4 |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Chamfer diameter 2 [mm]: | 132 |
Diameter [mm]: | 290 |
Height [mm]: | 78 |
Hub diameter 1 [mm]: | 115 |
Hub diameter [mm]: | 115 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 20 |
Number of holes in the wheel rim: | 8, 8 holes |
Number of mounting holes: | 8 |
Outside diameter [mm]: | 290 |
Part type: | Brake disc |
Surface: | Coated |
Weight, kg]: | 7.76, 7.84 |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 102 |
Chamfer diameter 1 [mm]: | 120 |
Chamfer diameter 2 [mm]: | 120 |
Diameter [mm]: | 290 |
Height [mm]: | 42,5, 42.5 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 19 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 290 |
Part type: | Brake disc |
Thread size: | 10,75 |
Treatment: | High carbon |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 150 |
Height [mm]: | 78 |
Location: | Rear axle |
Minimum thickness [mm]: | 19 |
Outside diameter [mm]: | 290 |
Surface: | Oiled |
Treatment: | Untreated |
check value: | E4 90R-02C0728/2595 |
Arrangement / number of holes: | 05/10 |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 102, 102.1 |
Chamfer diameter 1 [mm]: | 120 |
Chamfer diameter 2 [mm]: | 120 |
Diameter [mm]: | 290 |
Features of execution: | Without wheel bearing |
Features of execution 8: | Without hub, Without wheel axle |
Height [mm]: | 42.5, 43 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 19, 20.4 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 290 |
Packing height [cm]: | 9.5 |
Packing length [cm]: | 33.5 |
Packing width [cm]: | 32 |
Part type: | Brake disc |
Weight, kg]: | 6,3, 6.4 |
Brake disc thickness [mm]: | 24 |
Brake disc type: | Ventilated |
Build type: | Fixed with bolts / screws |
Centering diameter [mm]: | 79.5, 80 |
Depth [mm]: | 61.5 |
Diameter [mm]: | 280 |
Height [mm]: | 62 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 21 |
Number of mounting holes: | 6 |
Outside diameter [mm]: | 280 |
Part type: | Brake disc |
Surface: | Oiled |
Treatment: | Untreated |
check value: | E1 90R-02C0074/1474 |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 115 |
Chamfer diameter 1 [mm]: | 132 |
Chamfer diameter 2 [mm]: | 132 |
Colour: | Black |
Diameter [mm]: | 289.8 |
Height [mm]: | 78 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 19 |
Number of mounting holes: | 8 |
Outside diameter [mm]: | 289.8 |
Part type: | Brake disc |
Surface: | Varnished |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Build type: | Fixed with bolts / screws |
Centering diameter [mm]: | 90 |
Depth [mm]: | 78 |
Diameter [mm]: | 305 |
Height [mm]: | 78 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 25, 26 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 305 |
Part type: | Brake disc |
Surface: | Oiled |
Treatment: | Untreated |
check value: | E4 90 R - 02 C0703/2 |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 102 |
Height [mm]: | 42 |
Location: | Front axle |
Minimum thickness [mm]: | 19 |
Outside diameter [mm]: | 290 |
Surface: | Coated |
Treatment: | Untreated |
Brake disc thickness [mm]: | 26 |
Brake disc type: | Ventilated |
Brake system: | Brembo |
Centering diameter [mm]: | 102 |
Chamfer diameter 1 [mm]: | 120 |
Chamfer diameter 2 [mm]: | 120 |
Diameter [mm]: | 290 |
Height [mm]: | 42,5, 42.5 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 24 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 290 |
Packing height [cm]: | 4.5 |
Packing length [cm]: | 29.5 |
Packing width [cm]: | 29.5 |
Part type: | Brake disc |
Weight, kg]: | 14.1, 6.97 |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Brake system: | Brembo |
Centering diameter [mm]: | 102 |
Chamfer diameter 1 [mm]: | 120 |
Chamfer diameter 2 [mm]: | 120 |
Diameter [mm]: | 290 |
Height [mm]: | 42,5, 42.5 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 20.4 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 290 |
Packing height [cm]: | 5 |
Packing length [cm]: | 29.5 |
Packing width [cm]: | 29.5 |
Part type: | Brake disc |
Weight, kg]: | 6, 6.144 |
unit of measurement: | Piece |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Chamfer diameter 2 [mm]: | 130 |
Diameter [mm]: | 302 |
Height [mm]: | 69,9, 69.9 |
Hub diameter 1 [mm]: | 90 |
Hub diameter [mm]: | 90 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 24.5, 26 |
Number of holes in the wheel rim: | 5, 5 holes |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 302 |
Part type: | Brake disc |
Surface: | Coated |
Weight, kg]: | 9.26, 9.5 |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 102 |
Diameter [mm]: | 290 |
For article or original number: | 09.7262.10 |
Height [mm]: | 42,5, 42.5, 43 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 19 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 290 |
Part type: | Brake disc |
Treatment: | High carbon |
Additional Information: | Without hub, Without wheel axle |
Arrangement / number of holes: | 05/10 |
Brake disc thickness [mm]: | 26 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 102 |
Chamfer diameter 1 [mm]: | 120 |
Chamfer diameter 2 [mm]: | 120 |
Diameter [mm]: | 290 |
Features of execution: | Without wheel bearing |
Features of execution 8: | Without hub, Without wheel axle |
Height [mm]: | 42.5, 43 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 23 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 290 |
Packing height [cm]: | 9.5 |
Packing length [cm]: | 33.5 |
Packing width [cm]: | 32 |
Part type: | Brake disc |
Technical information: | 98200 1175 0 1 |
Weight, kg]: | 7.2, 7.22 |
Brake disc thickness [mm]: | 22 |
Brake disc type: | Ventilated |
Centering diameter [mm]: | 102 |
Chamfer diameter 1 [mm]: | 120 |
Chamfer diameter 2 [mm]: | 120 |
Colour: | Black |
Diameter [mm]: | 290 |
Height [mm]: | 42,5, 42.5 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 19 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 290 |
Part type: | Brake disc |
Surface: | Varnished |
Thread size: | 10,75 |
Treatment: | High carbon |
Brake disc thickness [mm]: | 28 |
Brake disc type: | Ventilated |
Build type: | Fixed with bolts / screws |
Centering diameter [mm]: | 90 |
Depth [mm]: | 69.8 |
Diameter [mm]: | 302 |
Features of execution 8: | With screws |
Height [mm]: | 70 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 24, 24.5 |
Number of mounting holes: | 5 |
Outside diameter [mm]: | 302 |
Part type: | Brake disc |
Surface: | Oiled |
Treatment: | Untreated |
check value: | E4 90R - 02C0703/262 |
