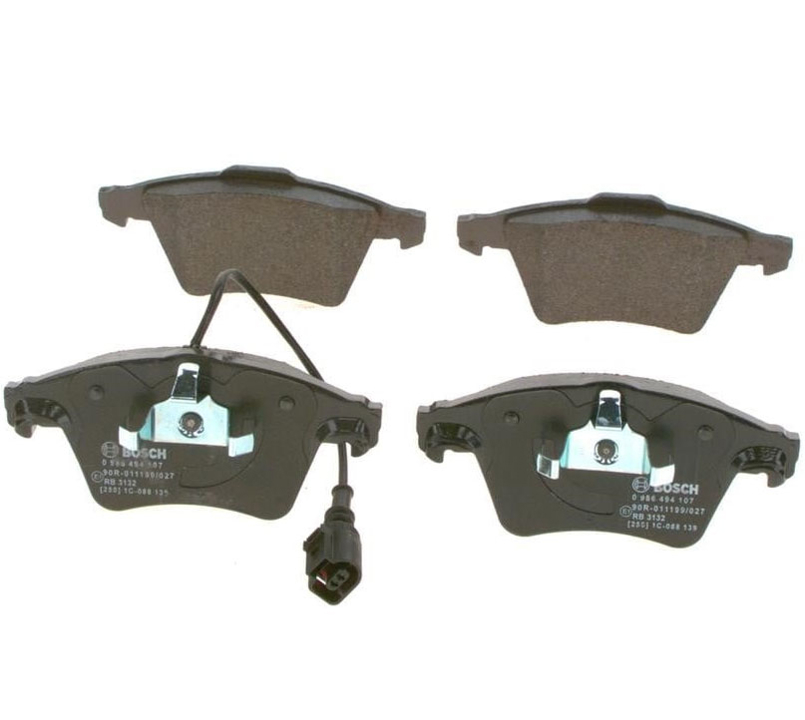

| Brake type: | Disc mechanism |
| Height [mm]: | 74.9 |
| Height 1 [mm]: | 73.3 |
| Height 2 [mm]: | 73.5, 74.8 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 17.9 mm |
| Thickness 1 [mm]: | 0 |
| Thickness 2 [mm]: | 17.9 |
| Wear sensor: | with integrated wear sensor |
| Width [mm]: | 156.4 |
| Width 1 [mm]: | 155.2 |
| Width 2 [mm]: | 156,4, 156.4 |
| WVA number: | 23749, 8287d117, Bp1017, E1 90r-011199/027 |
| Brake type: | Disc mechanism |
| Height [mm]: | 64,8, 64.7 |
| Height 2 [mm]: | 64.8 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 17.1 mm |
| Thickness 1 [mm]: | 0, 17.13 |
| Thickness 2 [mm]: | 17,43, 17.4 |
| Wear indication: | Acoustic wear warning |
| Wear sensor: | with acoustic wear warning |
| Width [mm]: | 152,3, 152.4 |
| Width 1 [mm]: | 152.3 |
| Width 2 [mm]: | 152.4 |
| WVA number: | 24766, Bp1290, E1-90r-011328/1113 |
| Brake type: | Disc mechanism |
| Height [mm]: | 59,2, 59.2 |
| Height 2 [mm]: | 59.2 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 18 mm |
| Thickness 1 [mm]: | 0, 18 |
| Thickness 2 [mm]: | 18,3, 18.3 |
| Width [mm]: | 137,1, 137.1 |
| Width 1 [mm]: | 137.1 |
| Width 2 [mm]: | 137.1 |
| WVA number: | 25438, Bp1485, E9 90r-02a0870/3824 |
| Brake type: | Disc mechanism |
| Height [mm]: | 176, 69.7 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Number of bolts: | 4 |
| Thickness [mm]: | 20 mm |
| Wear sensor: | with integrated wear sensor |
| Width [mm]: | 175.5, 68 |
| WVA number: | 25217, Bp1699, E9 90r-02a0904/3045 |
| Brake system: | Ate |
| Brake type: | Disc mechanism |
| Height [mm]: | 74,2, 74.2 |
| Height 2 [mm]: | 74.2 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 19.5 mm |
| Thickness 1 [mm]: | 0 |
| Thickness 2 [mm]: | 19.5 |
| Width [mm]: | 156,5, 156.5 |
| Width 1 [mm]: | 156.5 |
| Width 2 [mm]: | 156.5 |
| WVA number: | 20676, 21 624, 7434d555;7434d687;7710d687;7711d836, 90r01139-012, Bp-aud-f2, Bp249 |
| Brake type: | Disc mechanism |
| Height [mm]: | 70,4, 70.4 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 15 mm |
| Wear sensor: | with integrated wear sensor |
| Width [mm]: | 124,9, 124.9 |
| WVA number: | 24162, Bp1163, E9 90r-02a0870/1273 |
| Brake type: | Disc mechanism |
| Height [mm]: | 73,5, 73.5 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Number of bolts: | 4 |
| Thickness [mm]: | 20.6 mm |
| Width [mm]: | 169,1, 169.3 |
| WVA number: | 29200, 8383d1268, Bp1104, E1 90r-011198/004 |
| Brake type: | Disc mechanism |
| Height [mm]: | 71.4 |
| Height 1 [mm]: | 64 |
| Height 2 [mm]: | 64, 71.4 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 18 mm |
| Thickness 1 [mm]: | 0 |
| Thickness 2 [mm]: | 18 |
| Width [mm]: | 131,8, 131.5 |
| Width 1 [mm]: | 131.5 |
| Width 2 [mm]: | 131.5 |
| WVA number: | 23984, Bp1410, E9 90r-01870/2022 |
| Brake type: | Disc mechanism |
| Height [mm]: | 64 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 17.2 mm |
| Wear indication: | Acoustic wear warning |
| Wear sensor: | with acoustic wear warning |
| Width [mm]: | 146,9, 146.9 |
| WVA number: | 24604, 8389d127; 8439d132, Bp1414, E9 90r-01904/2139 |
| Brake type: | Disc mechanism |
| Height [mm]: | 73.6 |
| Height 1 [mm]: | 73.6 |
| Height 2 [mm]: | 73 |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 19 mm |
| Thickness 1 [mm]: | 0 |
| Thickness 2 [mm]: | 19 |
| Wear indication: | With sensor |
| Wear sensor: | incl. wear gauge |
| Width [mm]: | 188 |
| Width 1 [mm]: | 188 |
| Width 2 [mm]: | 188 |
| WVA number: | 24310, 24743, Bp1378, E9 90r- 02a1080/3220 |
| Brake system: | Ate |
| Brake type: | Disc mechanism |
| Height [mm]: | 78,7, 78.7 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 18. |
| Wear sensor: | with integrated wear sensor |
| Width [mm]: | 156,3, 156.3 |
| WVA number: | 23419, 7884d982, Bp921, E11 90r-01766/7202 |
| Brake type: | Disc mechanism |
| Height [mm]: | 71,3, 71.3 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 17.2 mm |
| Width [mm]: | 119,7, 119.7 |
| WVA number: | 23271, Bp1497, D847 |

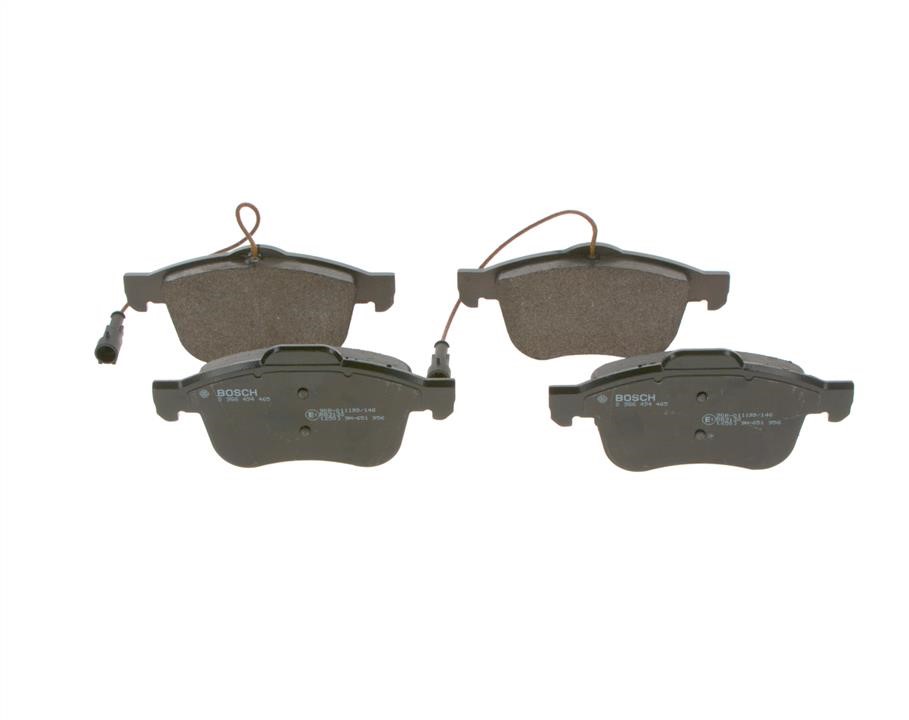

| Brake type: | Disc mechanism |
| Height [mm]: | 69 |
| Height 1 [mm]: | 69 |
| Height 2 [mm]: | 71.3 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 20.2 mm |
| Thickness 1 [mm]: | 0 |
| Thickness 2 [mm]: | 20.2 |
| Wear sensor: | with integrated wear sensor |
| Width [mm]: | 155,2, 155.2 |
| Width 1 [mm]: | 155.2 |
| Width 2 [mm]: | 155.2 |
| WVA number: | 24339, Bp1386, E1 90r-011199/146 |
| Brake system: | Lucas/girling |
| Brake type: | Disc mechanism |
| Height [mm]: | 64,9, 64.9 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 20 mm |
| Wear indication: | Acoustic wear warning |
| Wear sensor: | with acoustic wear warning |
| Width [mm]: | 124 |
| WVA number: | 23532, Bp332, E9 90r-02a1080/1179 |
| Brake system: | Brembo |
| Brake type: | Disc mechanism |
| Height [mm]: | 70,8, 70.8 |
| Location: | Front axle |
| Manufacturer limitation: | Brembo system |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 16.9 mm |
| Width [mm]: | 119,2, 119.5 |
| WVA number: | 23271, Bp418, D0847, E1 90r-011076/2032 |
| Brake type: | Disc mechanism |
| Height [mm]: | 66,5, 66.5 |
| Location: | Rear axle |
| Manufacturing material: | Low-metallic |
| Number of bolts: | 4 |
| Thickness [mm]: | 20.2 mm |
| Wear indication: | With sensor |
| Wear sensor: | incl. wear gauge |
| Width [mm]: | 164,8, 164.8 |
| WVA number: | 29121, 8835d1487, Bp1117, E9 90r - 02a1100/1318 |
| Brake type: | Disc mechanism |
| Height [mm]: | 73 |
| Height 1 [mm]: | 73.6 |
| Height 2 [mm]: | 80,6, 80.5 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Number of bolts: | 4 |
| Thickness [mm]: | 19 mm |
| Thickness 1 [mm]: | 0 |
| Thickness 2 [mm]: | 19 |
| Width [mm]: | 188, 188,1 |
| Width 1 [mm]: | 188 |
| Width 2 [mm]: | 188 |
| WVA number: | 24310, 8453d1342, Bp1175, E9 90r-02a1080/2234 |
| Brake type: | Disc mechanism |
| Height [mm]: | 56,4, 56.4 |
| Location: | Front axle |
| Manufacturer limitation: | Kelsey-hayes system |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 17.4 mm |
| Wear indication: | Acoustic wear warning |
| Wear sensor: | with acoustic wear warning |
| Width [mm]: | 154,2, 154.2 |
| WVA number: | 23472, 7532d652, Bp372, E9 90r-02a0904/0245 |
| Brake type: | Disc mechanism |
| Height [mm]: | 63,5, 63.5 |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 17.9 mm |
| Wear indication: | Acoustic wear warning |
| Wear sensor: | with acoustic wear warning |
| Width [mm]: | 157,1, 157.1 |
| WVA number: | 24222, Bp1674, E9 90r-02a0899/1145 |
| Brake system: | Ate |
| Brake type: | Disc mechanism |
| Height [mm]: | 63,7, 63.7 |
| Height 2 [mm]: | 63.7 |
| Location: | Front axle |
| Manufacturing material: | Low-metallic |
| Thickness [mm]: | 20.1 mm |
| Thickness 1 [mm]: | 0 |
| Thickness 2 [mm]: | 20.1 |
| Width [mm]: | 154.8 |
| Width 1 [mm]: | 154.8 |
| Width 2 [mm]: | 155,3, 155.3 |
| WVA number: | 21676, 21677, Bp-bmw-f4, Bp253, E11 90r-01766/7197 |
