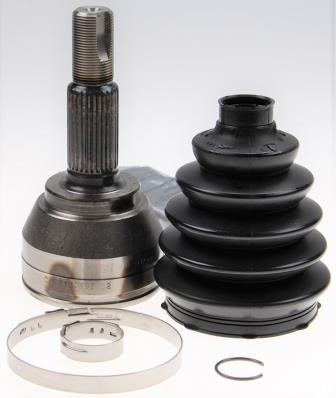

Coupling / mating type: | Constant-velocity joint |
Diameter 1 [mm]: | 21.59 |
Features of execution 8: | With castellated nut |
Hinge diameter [mm]: | 76 |
Internal gear connection on the wheel side: | 28 |
Length [mm]: | 150.25, 150.3 |
Number of Teeth, ABS Ring: | 29 |
Outer gearing wheel side: | 22 |
Ring-ABS, dia. (Mm): | 78 |
Spacer diameter [mm]: | 52 |
Thread size: | M20x1.0 |
Wheel-side gear connection: | 22 |
machined: | With groove / notch in the inner part |
Coupling / mating type: | Hinge disc |
Features of execution 8: | With cap, With rubber cuff |
Hinge diameter [mm]: | 100 |
Hole diameter [mm]: | 8.2 |
Internal gear connection on the differential side: | 33 |
Length [mm]: | 34 |
Number of holes: | 6 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Constant-velocity joint |
Features of execution 8: | With rubber cuff |
Hinge diameter [mm]: | 81 |
Internal gear connection on the wheel side: | 30 |
Length [mm]: | 129 |
Outer gearing wheel side: | 36 |
Spacer diameter [mm]: | 53 |
Thread size: | M20x1.5 |
Wheel-side gear connection: | 36 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Constant-velocity joint |
Diameter 1 [mm]: | 23.45 |
Features of execution 8: | With rubber cuff |
Hinge diameter [mm]: | 90 |
Internal gear connection on the wheel side: | 30 |
Length [mm]: | 139 |
Outer gearing wheel side: | 22 |
Spacer diameter [mm]: | 53 |
Thread size: | M20x1.5 |
Wheel-side gear connection: | 22 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Hinge disc |
Features of execution 8: | With cap, With rubber cuff |
Hinge diameter [mm]: | 100 |
Hole diameter [mm]: | 8.2 |
Internal gear connection on the differential side: | 33 |
Length [mm]: | 32 |
Number of holes: | 6 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Constant-velocity joint |
Hinge diameter [mm]: | 79 |
Internal gear connection on the wheel side: | 22 |
Length [mm]: | 134 |
Outer gearing wheel side: | 25 |
Spacer diameter [mm]: | 58.7 |
Thread size: | M24x1.5 |
Wheel-side gear connection: | 25 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Constant-velocity joint |
Hinge diameter [mm]: | 98 |
Internal gear connection on the wheel side: | 27 |
Length [mm]: | 163 |
Number of Teeth, ABS Ring: | 43 |
Outer gearing wheel side: | 26 |
Ring-ABS, dia. (Mm): | 82 |
Spacer diameter [mm]: | 56.5 |
Thread size: | M22x1.5 |
Wheel-side gear connection: | 26 |
machined: | With groove / notch in the inner part |
Coupling / mating type: | Constant-velocity joint |
Diameter 1 [mm]: | 23.8 |
Hinge diameter [mm]: | 81 |
Internal gear connection on the wheel side: | 22 |
Length [mm]: | 155.8, 155.83 |
Outer gearing wheel side: | 33 |
Spacer diameter [mm]: | 52 |
Thread size: | M20x1.0 |
Wheel-side gear connection: | 33 |
machined: | With groove / notch in the inner part |
Coupling / mating type: | Constant-velocity joint |
Hinge diameter [mm]: | 98 |
Internal gear connection on the wheel side: | 27 |
Number of Teeth, ABS Ring: | 48 |
Spacer diameter [mm]: | 38 |
Wheel-side gear connection: | 27 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Hinge disc |
Features of execution 8: | With cap, With rubber cuff |
Hinge diameter [mm]: | 108 |
Hole diameter [mm]: | 10.2 |
Internal gear connection on the differential side: | 28 |
Length [mm]: | 32 |
Number of holes: | 6 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Constant-velocity joint |
Hinge diameter [mm]: | 98 |
Internal gear connection on the wheel side: | 27 |
Length [mm]: | 99 |
Number of Teeth, ABS Ring: | 48 |
Outer gearing wheel side: | 38 |
Ring-ABS, dia. (Mm): | 104 |
Spacer diameter [mm]: | 60 |
Thread size: | M16x1.5f |
Wheel-side gear connection: | 38 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Constant-velocity joint |
Features of execution 8: | With rubber cuff |
Hinge diameter [mm]: | 98 |
Internal gear connection on the wheel side: | 27 |
Length [mm]: | 93 |
Number of Teeth, ABS Ring: | 45 |
Outer gearing wheel side: | 33 |
Spacer diameter [mm]: | 53 |
Thread size: | M14x1.5f |
Wheel-side gear connection: | 33 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Constant-velocity joint |
Hinge diameter [mm]: | 79.5 |
Internal gear connection on the wheel side: | 22 |
Length [mm]: | 141.27, 141.3 |
Outer gearing wheel side: | 21 |
Spacer diameter [mm]: | 48.8 |
Thread size: | M20x1.5 |
Wheel-side gear connection: | 21 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Constant-velocity joint |
Features of execution 8: | With rubber cuff |
Hinge diameter [mm]: | 98 |
Internal gear connection on the wheel side: | 39 |
Length [mm]: | 174.5 |
Outer gearing wheel side: | 28 |
Spacer diameter [mm]: | 63 |
Thread size: | M28x1.5 |
Wheel-side gear connection: | 28 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Hinge disc |
Features of execution 8: | With cap, With rubber cuff |
Hinge diameter [mm]: | 100 |
Hole diameter [mm]: | 10.2 |
Internal gear connection on the differential side: | 25 |
Length [mm]: | 26 |
Number of holes: | 6 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Constant-velocity joint |
Features of execution 8: | With rubber cuff |
Hinge diameter [mm]: | 68.5 |
Internal gear connection on the wheel side: | 19 |
Length [mm]: | 148 |
Outer gearing wheel side: | 23 |
Spacer diameter [mm]: | 49 |
Thread size: | M18x1,5 |
Wheel-side gear connection: | 23 |
machined: | With groove / notch in the inner part |
Coupling / mating type: | Hinge disc |
Hinge diameter [mm]: | 108 |
Hole diameter [mm]: | 10.2 |
Internal gear connection on the differential side: | 28 |
Length [mm]: | 40 |
Number of holes: | 6 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Constant-velocity joint |
Diameter 1 [mm]: | 23.45 |
Features of execution 8: | With rubber cuff |
Hinge diameter [mm]: | 90 |
Internal gear connection on the wheel side: | 30 |
Length [mm]: | 139 |
Outer gearing wheel side: | 22 |
Spacer diameter [mm]: | 53 |
Thread size: | M20x1.5 |
Wheel-side gear connection: | 22 |
machined: | Without cutting / Withouttching in the inner part |
Coupling / mating type: | Constant-velocity joint |
Diameter 1 [mm]: | 24.95 |
Features of execution 8: | With rubber cuff |
Hinge diameter [mm]: | 84 |
Internal gear connection on the wheel side: | 32 |
Length [mm]: | 131.5 |
Outer gearing wheel side: | 26 |
Spacer diameter [mm]: | 49 |
Thread size: | M22x1.5 |
Wheel-side gear connection: | 26 |
machined: | With groove / notch in the inner part |
Coupling / mating type: | Hinge disc |
Features of execution 8: | With rubber cuff |
Hinge diameter [mm]: | 108 |
Hole diameter [mm]: | 10.2 |
Internal gear connection on the differential side: | 28 |
Length [mm]: | 31.5 |
Number of holes: | 6 |
machined: | Without cutting / Withouttching in the inner part |
